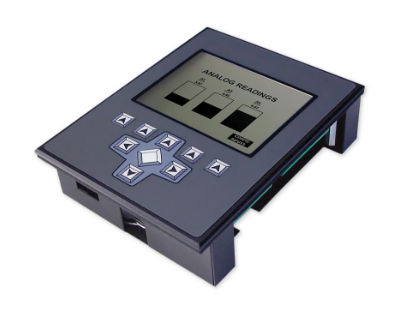

Operator interface with keyboard OP7200panel-mountVGAprogrammable
Add to favorites
Compare this product
Characteristics
- Interface
- with keyboard
- Mounting
- panel-mount
- Resolution
- VGA
- Other characteristics
- programmable, LCD
- Applications
- display
- Screen size
2.4 in
Description
Rabbit® 2000 microprocessor at 22 MHz
¼ VGA display (320 x 240 pixels)
10Base-T Ethernet, RJ-45
256K Flash/128K SRAM
24-27 industrialized I/O and 4 CMOS-compatible serial ports
Microprocessor Rabbit® 2000 @ 22 MHz
Ethernet Port 10/100-compatible with 10Base-T interface, RJ-45
Flash Memory (Program) 256K
SRAM 128K
Backup Battery Socketed 3V lithium coin type, 265 mA·h
Keypad/Display ¼ VGA (320 × 240 pixels) with programmable white LED backlight, black on white display, transflective FSTN LCD, 6 o’clock viewing angle; 9-key keypad
Catalogs
No catalogs are available for this product.
See all of Rabbit‘s catalogs
