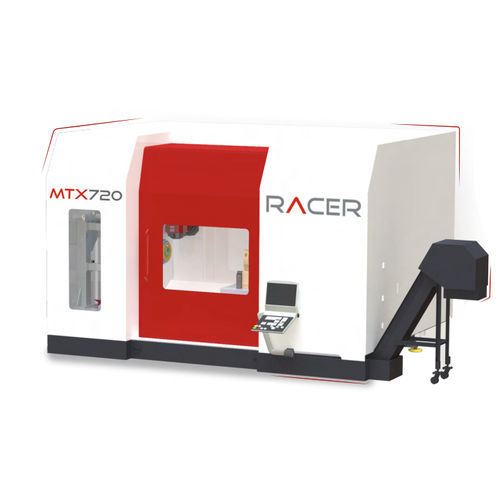

CNC milling-turning center MTX series

horizontal3-axisspindle

Machine Capacity - Max. Machinable Length - Up to 6000 mm Tool Spindle - RPM - 15000 KW - 30 - 60 Z1 Axis (mm) - Up to 6000 B Axis - +/- 120 Tool Holder - HSK-63T TURNING SPINDLE RPM - 5000 - 3000 KW - 30 - 40 Bar Capacity (mm) - 65 - 102 Chuck Diameter (mm) - 254 - 304.8 Tool Change Capacity - 60 - 80 Lower Turret - Number Tools - 12 Live Tools - Up to 12 Speed RPM - 3000 X2 (mm) - 220 Z2 (mm) - Up to 6000 Tailstock - Travel (mm) - Up to 6000 Accuracy - Linear Positioning (mm) - 0.0002″ Linear Repeatability (mm) - 0.00012″ Rotational Positioning - 8 Arcsecs Rotational Repeatability - 4 Arcsecs Dynamic Machine Rigidity - Axial N/μm - 350 Radial N/μm - 275
