3-axis CNC machining center THX series
verticalwith rotary table2-spindle

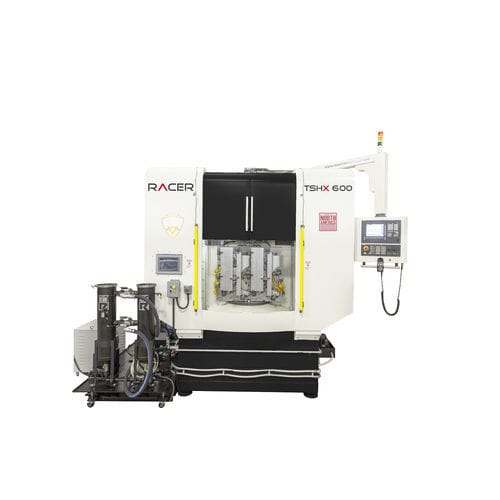

3-axis CNC machining center - THX series - Racer Machinery International USA Inc. - vertical / with rotary table / 2-spindle
3-axis CNC machining center - THX series - Racer Machinery International USA Inc. - vertical / with rotary table / 2-spindle
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
with rotary table
Number of spindles
2-spindle
Number of tool stations
60 tools, 120 tools
Applications
for the automobile industry, for medical applications
X travel

1,500 mm, 1,780 mm, 2,110 mm
(59.06 in, 70.08 in, 83.07 in)

Y travel

1,270 mm, 1,500 mm, 1,830 mm
(50 in, 59.06 in, 72.05 in)

Z travel

1,250 mm, 1,500 mm, 1,830 mm
(49.21 in, 59.06 in, 72.05 in)

Rotational speed

12,000 rpm, 15,000 rpm
(75,398 rad.min-1, 94,248 rad.min-1)

Power

50 ch, 60 ch
(50 hp, 60 hp)

Work feed X-axis

40,000 mm/min
(26 in/s)

Work feed Y-axis

40,000 mm/min
(26 in/s)

Table load capacity

3,000 kg, 5,000 kg, 8,000 kg
(6,614 lb, 11,023 lb, 17,637 lb)

Positioning accuracy

0.005 mm
(0.0002 in)

Repeatability

0.002 mm
(0.00008 in)

Description

Pallet Size - 1000mm x 1000mm - 1250mm x 1250mm - 1525mm x 1300mm Table Index - - Full 360° - Control * - Siemans ONE - Siemans ONE - Siemans ONE Rotary Table - 3 arc sec - 7 arc sec/3.5 arc sec - 7 arc sec/3.5 arc sec
