- Racer Machinery International USA Inc.

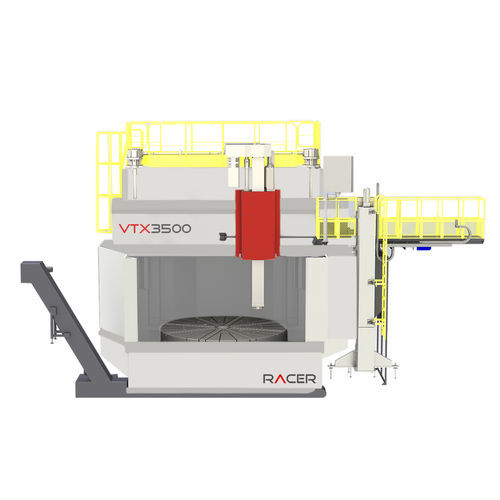

CNC turning center VTX seriesvertical2-axis12 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 2-axis
- Number of tool stations
- 12 tools, 24 tools
- Applications
- for aerospace applications
- Diameter
2,100 mm, 2,500 mm, 3,500 mm, 4,000 mm, 5,000 mm
(82.68 in, 98.43 in, 137.8 in, 157.48 in, 196.85 in)- Spindle speed
80 rpm, 100 rpm, 200 rpm, 260 rpm, 450 rpm
(502.655 rad.min-1, 628.319 rad.min-1, 1,256.637 rad.min-1, 1,633.628 rad.min-1, 2,827.433 rad.min-1)- Rapids on X
12,000 mm/min
(8 in/s)- Rapids on Z
10,000 mm/min
(7 in/s)- Nominal power
44 kW, 74 kW, 92 kW, 99 kW, 119 kW
(59.8 hp, 100.6 hp, 125.1 hp, 134.6 hp, 161.8 hp)
Description
CAPACITY -
Table Diameter mm - 2000 - 3000 - 3500 - 4500
Max. Turning Height mm - 1000 - 1600 - 1700 - 2500
Extended Turning Height (optional) - up to 2000 - up to 2500 - 3200 - up to 4000
Max. Table Load kg - 22000 - 33000 - 44000 - 66000 - 88000
TABLE DRIVE -
Torque N/M - 30000 - 49000 - 81000 - 200000 - 250000
RAM -
Ram Size mm - 204 x 204 - 254 x 254 - 305 x 305
Max. Cutting Force N/M - 40000 - 50000 - 60000
TRAVELS -
Distance Table to Ram -
Ram (Z-Axis) mm - 800 - 1250 - 1300 - 1600 - 1600
Extended Ram mm - up to 1600 - 1600 - 2100
Cross Rail Travel mm - 600 - 1000 - 1200 - 1600
Cross Rail Fixed Positions mm - 200 - 400
Number of Cross Rail Positions Distance mm - 4 - 6 - 5
X & Z Feed Rates mm - 5000
Catalogs
VTX SERIES
6 Pages
