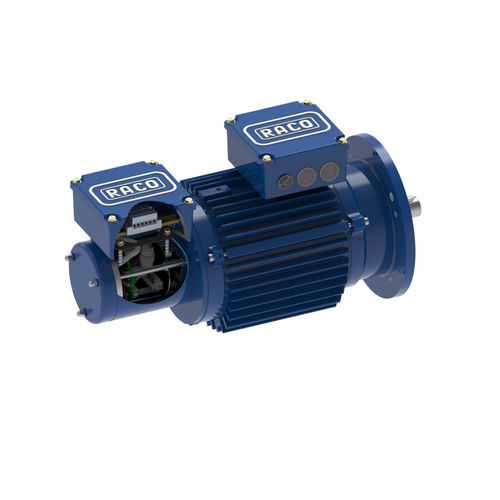

Linear position sensor EPS series

non-contactmagneticanalog

The non-contact EPS position sensor system is a tried and tested component of RACO actuators for monitoring end positions, analogue position feedback or electronic overload cut-off according to the RPM principle (RPM principle = sensory speed monitoring). You can select the optimum solution for your plant topography from the path sensor variants. All series and sizes of RACO electric actuators can be equipped with RACO EPS sensor technology. Advantages & Benetfits • compact, modular structure • convenient adjustment in the teach-in or via PC Windows software • low switching hysteresis • precise switching positions • wear-resistant and with repeat accuracy - no need for manual transmission with play • simple and intelligent diagnosis • Temperature monitoring of the motor windings and signalling via EPS path sensor EPS 02 The RACO positioning system has been designed especially for positioning electromechanical actuators for carrying out linear movements. In this case, position is not mapped using the classical electromechanical method, rather it is realised inductively through magnetic field coupling. EPS 06 with analog Feedback With the RACO EPS 06 position sensor, additional functions have been integrated into the tried and tested RACO position sensor. With an additional interface board, space has been created for further analogue and digital outputs and additional functionality.
