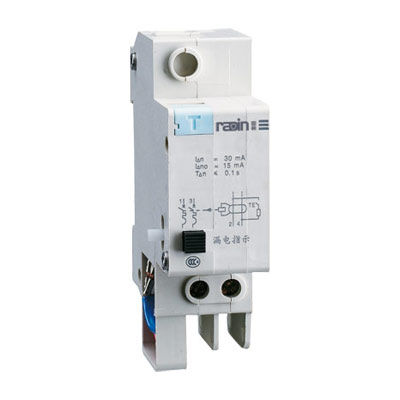

Thermal-magnetic circuit breaker DZ47LE seriesearth-leakageAC3-pole
Add to favorites
Compare this product
Characteristics
- Type
- thermal-magnetic
- Electrical characteristics
- earth-leakage, AC, 3-pole, 2-pole, 4-pole
- Number of poles
- single-pole
- Other characteristics
- miniature
- Primary current
Min.: 6 A
Max.: 100 A
- VAC
230 V, 400 V
Description
Application
DZ47LE series leakage release is made up of high conducting magnetic zero sequence current current, electrical board and high resistant casing.The DZ47 miniature circuit breaker and leakage release is assembled to leakage miniature circuit breaker, and the rated current down rating factor 0.8.It is mainly used in AC 50Hz/60Hz, rated voltage of 230V/400V, and rated current up to 100A for leakage protection.
The product meets the standards of GB16917.1 and IEC61009-1.
Catalogs
DZ47LE-63 Sériés
2 Pages
