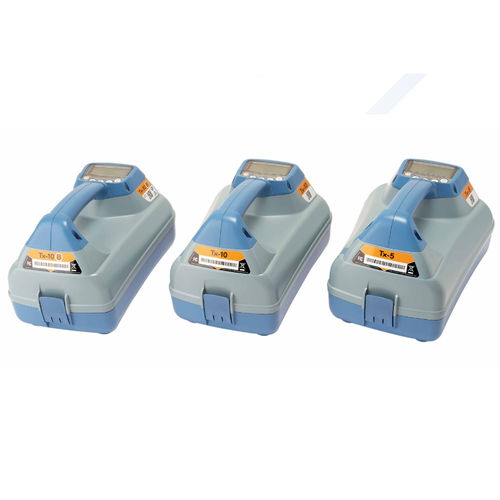

Signal transmission system Tx series

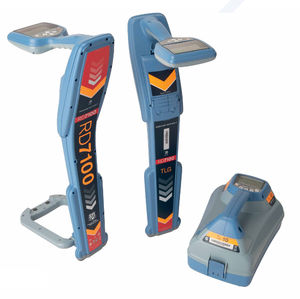

The Tx family of signal transmitters has been designed to perfectly complement Radiodetection’s advanced high-precision cable and pipe locators including the RD8100, RD7100, and Marker Locator ranges. The Tx range is designed to meet the demands of tracing utilities through today’s complex underground infrastructure. The Tx-5 has a medium power and induction capability as well as Fault-Find. The Tx-10 has the highest power capability with both Fault-Find and CD modes as standard. The transmitter range features locate frequencies compatible with locators across the Radiodetection Precision Locator ranges, and can be easily customized to match your chosen locator using the ‘model’ feature. All transmitters feature constant current across their entire bandwidth in all modes (direct connect, clamp or inductive mode), and deliver convenience on-site with an IP65 ingress protection rating, removable accessory tray and a large, high-contrast, backlit LCD screen. iLOC remote control iLOC is an advanced Bluetooth® link between the RD8100 locator and transmitter, which allows you to control the locate signal’s power and frequency from up to 1400’ / 450m away. Less time walking and more time locating. 90V maximum output High voltage output makes sure that you can get locatable signal onto even high impedance lines like telephone pairs. SideStepAuto The transmitter can be used to recommend a general-purpose locate frequency for the intended locate task by measuring the impedance of the target cable or pipe. SideStepAuto helps to improve locate accuracy and extends battery life.
