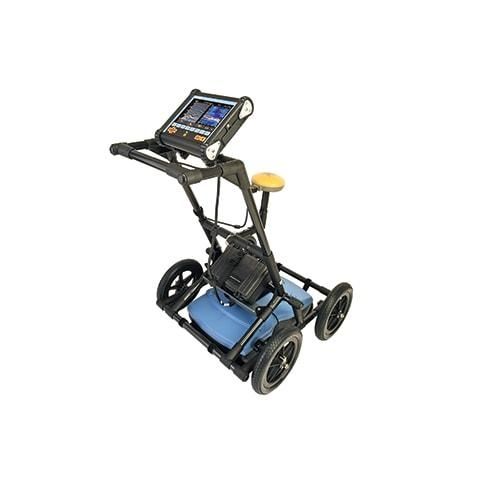

Underground pipe ground penetrating radar RD1500

The RD1500 provides all the great features of the RD1100 and also offers Depth Slices as well as Line Views. These allow the user to review slices of the subsurface at different depths, displaying cables, pipes and other utilities in unprecedented clarity. The RD1500 features internal GPS, on-board Wi-Fi, a high resolution touch screen as well as the proprietary FrequenSee™ technology which selectively enhances small/shallow, medium size/depth, or large/deep targets, or even all at once, for easier viewing and detection. Mini reports can be generated and delivered directly from the survey site by connecting to a Wi-Fi network or by using a cell phone as a hotspot. Data can also be exported to a USB memory stick. Options for the RD1500 include: an external GPS, for higher positional accuracy the Enhancement package, which enables the user to slice through the exported depth data, export data to other formats and more, and for even more analysis, the Utility Suite software option that offers features such as processing and displaying grid data in alternative ways, and the ability to output data to 3D visualization software such as Voxler® Detect conductive and non-conductive pipes and ducts Ground Penetrating Radar can detect ceramic and plastic pipes and ducts which would otherwise require tracer wire to detect using an electromagnetic locator. Slice Views By recording Grid Scans, users can view not only Line Views but also Depth Slices, greatly increasing the clarity of the collected data. Additional analysis software options
