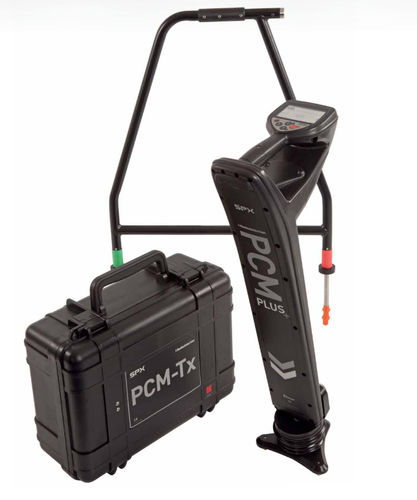

Underground pipe locator PCM+

GPS

This discontinued product has been replaced by the exciting new PCMx range of products. Radiodetection’s PCM+ system accurately detects and pinpoints weaknesses & holidays in oil & gas pipeline coatings. Combined with its new high performance transmitter the PCM+ accurately and easily locates and maps pipelines for up to 19 miles, providing simultaneous measurement of PCM Current and Voltage Gradient, even in areas where there is contact with other metallic structures, interference, or congestion. This eliminates the need for the pipeline technician to perform direct connection 'current spans' and manual calculations to determine CP currents along the pipeline reducing false indications and minimizing unnecessary excavations. Any current leakage fault in the pipeline coating can be further narrowed down to within 3 feet by use of the A frame. Precision Locator and PCM in one unit Accurate, high over-sampled measurements, 96000 Samples/sec 8kHz Fault Find Improves fault indication integrity Minimizes unnecessary excavations Identification of pickup/discharging from 3rd party CP Systems Low power for full day survey (2 x D Cells) Current mapping Quicker 3 Second current Mapping and up to 1000 measurements stored on PCM+ receiver. If PDA has GPS then software automatically includes xyz and time stamp for inclusion in graph. Integrates with standard GIS software. Realtime upload of measured data via Bluetooth to PDA or PC using Radiodetection PCM+ software application, presents recorded data in graphical or raw data format. PC / PDA graph display modes (against distance): Locate depth ACCA PCM current (mA and dBmA) Phase ACVG Position (using GPS) One portable case
