UHF radio transmitter MTX2 series

RFRS232ISM band

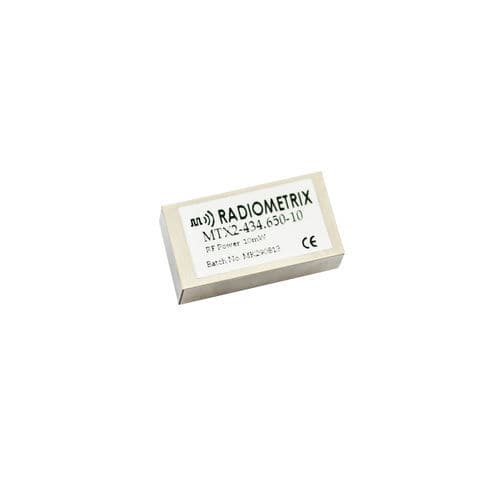

The MTX2 transmitter module adds a totally new sub-miniature form factor to the existing range of Radiometrix ISM band devices. Using cutting edge integrated RF devices, it offers multi channel, low power narrowband operation in a previously unobtainable size. It is ideally suited to applications where existing wideband modules have insufficient range and where traditional narrowband modules would physically be too big to fit in. Features Conforms to EN 300 220-2 and EN 301 489-3 High performance Fractional N (Sigma-Delta) Synthesizer with TCXO Vibration resistant (negligible microphony) Data rates up to 10 kbps for standard module Usable range over 500m (with suitable aerials and matching receiver) Fully screened. Very low profile Feature-rich interface (analogue and digital baseband) Re-programmable via RS232 interface Low power requirements Applications Keyfobs and other hand held terminals Small form factor data loggers Industrial telemetry and telecommand In-building environmental monitoring and control Covert, high-end security devices Unobtrusive fire alarm sensors Heavy vehicle/machinery controls
