Radio receiver WRX2C series

wirelessindustrialtelemetry

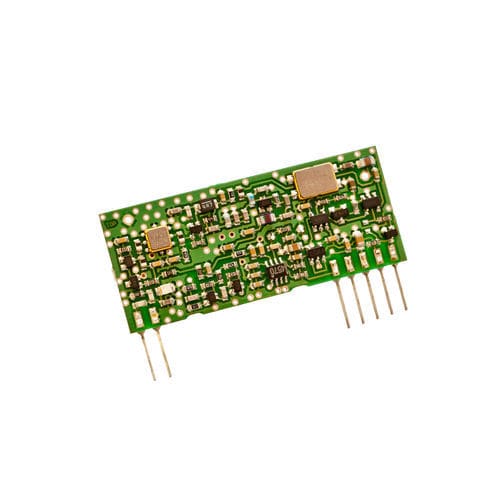

The WRX2C is a low cost wide band FM receiver with quasi-DC data slicer in a Radiometrix SIL standard pin out and footprint. It offers an economical and reliable low power data link without compromising the receiver performance. WRX2C receiver and the matching TX2A or TX2S transmitter enable the simple implementation of a wireless data link at up to 12 kbps at distances up to 75 metres in-building and 300 metres open ground. Features Conforms to ETSI EN 300 220-3 (radio) and EN 301 489-3 (EMC) Standard frequencies: 433.92MHz Custom frequencies available in 433.05-434.79MHz (EU) band Data rates up to 12kbps Usable range over 300m Applications Handheld terminals EPOS and inventory tracking Sensor nodes Data loggers Industrial telemetry and telecommand In-building environmental monitoring and control High-end security and fire alarms
