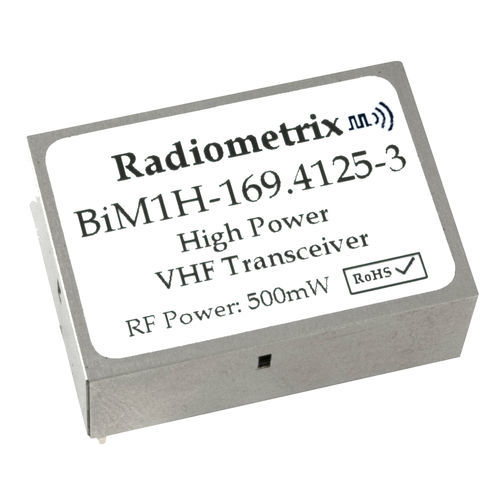

VHF transceiver module BiM1H series

radiotelemetrytracking

The BiM1H transceiver modules offer a 500mW RF output VHF data link in Radiometrix transceiver standard pin-out and footprint. This makes the BiM1H ideally suited to those low power applications where existing wideband transceivers provide insufficient range. Features Standard frequency 151MHz band Other frequencies from 120MHz to 180MHz Data rates up to 3kbps for standard module Usable range over 10km Fully screened Feature-rich interface (RSSI, analogue and digital baseband Low power requirements Applications Tracing and asset tracking systems Meter reading systems Industrial telemetry and telecommand Data loggersIn-building environmental monitoring and control Social alarms High-end security and fire alarms DGPS systems Vehicle data up/download
