VHF transceiver module ENX1

radiotelemetrymonitoring

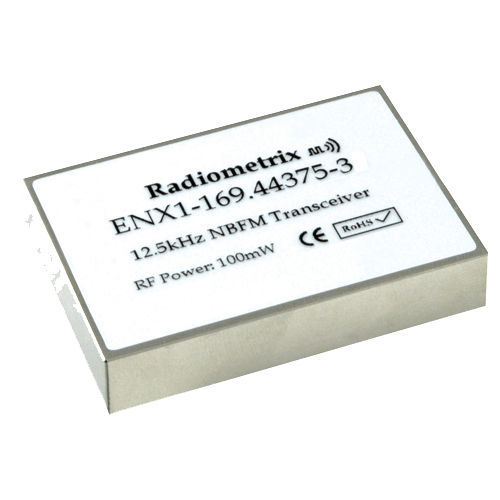

The ENX1 transceiver module offers a 100mW RF output VHF data link in a DIL pin-out and footprint. This makes the ENX1 ideally suited to those low power applications where existing narrow band and wideband transmitters provide insufficient range. A half duplex radio data link can be achieved over a distance up to 10km+ with suitable choice of data rate and antennas. Features Standard frequency: 169.40625MHz and 169.44375MHz Other frequencies from 120MHz to 180MHz 12.5 kHz channel spacing Data rates up to 3kbps Usable range over 10km Fully screened Low power requirements Applications EPOS equipment, barcode scanners Data loggers Industrial telemetry and telecommand In-building environmental monitoring and control High-end security and fire alarms DGPS systems Vehicle data up/download Automatic meter reading (AMR)
