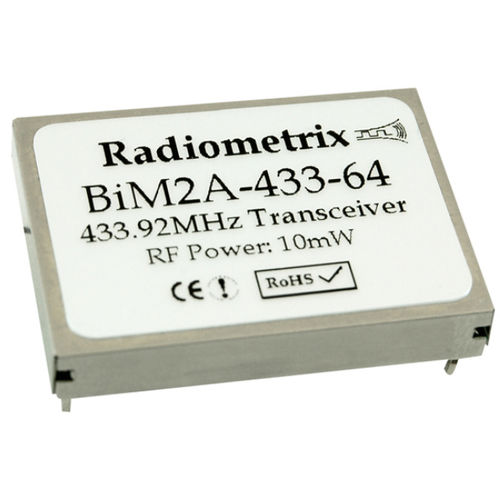

FM transceiver module BiM2A series

monitoringdatahalf-duplex

BiM2A is half-duplex crystals controlled PLL wideband FM transceiver operating on 433.05-434.79MHz European SRD band Features Complies with European harmonised standards EN 300 220-3 and EN 301 489-3 Data rates up to 64kbps Crystal controlled PLL FM circuitry for both Tx and Rx Receiver Sensitivity: -101dBm for 1ppm BER (64kbps) -104dBm for 1ppm BER (10kbps) Supply: 2.9V - 16V @ 13mA TX (10mW), 11mA Rx Usable range up to 300 metres external, 75 metres in building SAW front end filter and full screening RSSI (standard) or carrier detect option Analogue and digital baseband Low profile with small footprint 33 x 23 x 5mm Applications PDAs, organisers and laptops Wireless handheld terminals EPOS equipment, barcode scanners, belt clip printers Data loggers Audience response systems In-building environmental monitoring and control Security and fire alarms Restaurant ordering systems Vehicle data up/download
