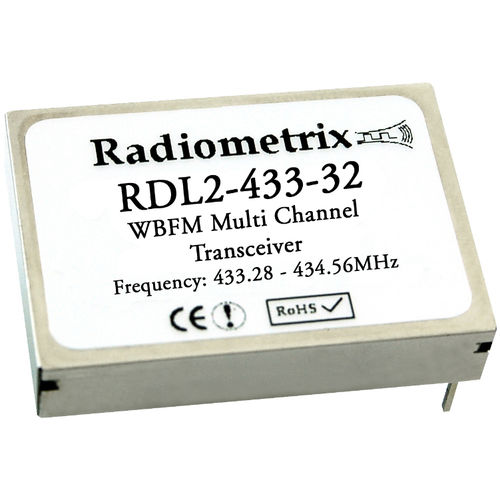

UHF transceiver module RDL2

FMtelemetrymonitoring

RDL2 is a half-duplex multi channel wideband FM transceiver in a BiM series footprint and operates on 433.05-434.79MHz European SRD band. This makes the RDL2 ideally suited to those low power applications where low cost multi-channel operation is required. The RDL2 modules are used in high-speed bi-directional data transfer applications at ranges up to 300metres. The small footprint of 23 x 33mm together with low power requirements of <28mA @ 5V enable convenient PCB installation. RDL2 allows operation on one of 5 pre-set frequencies in the 433MHz European licence exempt frequency band. These frequencies are non-overlapping and simultaneous operation of RDL2s in the same area on different channels will be possible. Units are supplied on 433.92MHz (Ch0) as default. Features Conforms to European EN 301 489-3 and ETSI EN 300 220-3 Data rates up to 32kbps High performance double superhet, PLL synthesizer Usable range up to 300 metres external, 75 metres in building SAW front end filter and full screening Low profile with small footprint 5 serial select wideband channels Available as RDL2T transmitter and RDL2R receiver for one-way communication Applications Wireless Handheld / portable terminals PDAs, organisers & laptops Industrial telemetry and telecommand In-building environmental monitoring and control Remote data acquisition system, data logging Fleet management, vehicle data acquisition
