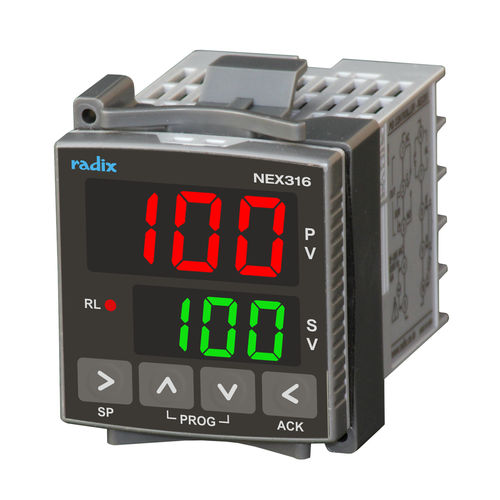

2 analog inputs PID controller NEX316

3-digitpanel-mountcompact

The NEX316 (48x48) PID Temperature Controller from Radix is a cost effective & economical model in the Economy Range. It has an easy-to-read, large display and compact size. This PID temperature controller is used in applications such as food processing machines, plastic extruders and moulding machines, packaging machines, ovens and small furnaces. Its precise temperature control provides a reliable solution at an affordable price. NEX316 accepts five types of thermocouples - J, K, R, S, T - and Pt100 RTD inputs. All these inputs are user settable through keys (not factory selected). No DIP switch is used. Thus, if a user needs to change the input type from thermocouple J to Pt100 RTD, he can easily do so through the keys. This feature allows dealers as well as end-users to use one product instead of multiple instruments for different inputs. NEX313 has a high input accuracy : thermocouple : ± 0.25% of span ±1 °C, RTD Pt100 : ± 0.05% of span ±1 °C, and maintains high accuracy throughout the operating temperature of -10 to 50 °C. Sampling time is 200 ms. The ‘Digital Filter’ parameter removes the fluctuation when the inputs have electrical noise. Many parameters such as Input Bias and Input Limits allow the instrument to adapt to any application. • - Compact : 48x48x61 mm • - Large display : Upper : 13.20 mm, Lower : 9.9 mm (0.52” / 0.39”) • - T/C, RTD inputs • - Input sampling time 200 ms • - Relay / SSR for control (field selectable) • - Autotuning for accurate PID parameters and control • - PID, On-Off control • - 85~265 V AC SMPS, 20~30 V AC/DC • - Optional IP66 front • - User friendly operation
