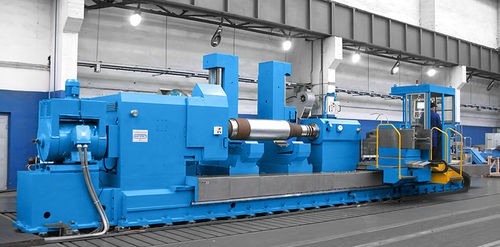

CNC turning center TCE series4-axisfor large workpieceshigh-productivity
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 4-axis
- Applications
- for large workpieces
- Performance
- high-productivity, precision
- Associated function
- milling, drilling
- Diameter
Max.: 2,500 mm
(98.43 in)Min.: 1,700 mm
(66.93 in)- Spindle speed
Max.: 160 rpm
(1,005.31 rad.min-1)Min.: 0.5 rpm
(3.142 rad.min-1)- Rapids on X
2,000 mm/min
(1 in/s)- Rapids on Z
4,000 mm/min
(3 in/s)- Nominal power
150 kW, 200 kW
(203.9 hp, 271.9 hp)- Overall lenght
7,000 mm
(276 in)- Overall width
4,350 mm
(171 in)- Weight
3,500 kg
(7,716 lb)
Description
In their basic version the TCE series (TCE 200 / TCE 250) super heavy centre lathes – thanks to the innovative mechanical solutions and the advanced control systems – are the multi-purpose lathes that guarantee productive rough and finish machining.
PURPOSE
The TCE series lathes are designed for workpiece machining in the range of turning in accordance with their specifications, especially for machining of large-size shafts. When delivered with special equipment they can operate as the horizontal machining centres with turning, drilling and milling capabilities. They can be equipped with an automatic turret, tool attachments, tool and workpiece measuring systems, controlled C axis, workpiece steady rests.
CONTROL SYSTEM
The application of the state-of-the-art CNC system allows for automatic, precise and productive workpiece machining according to a program
