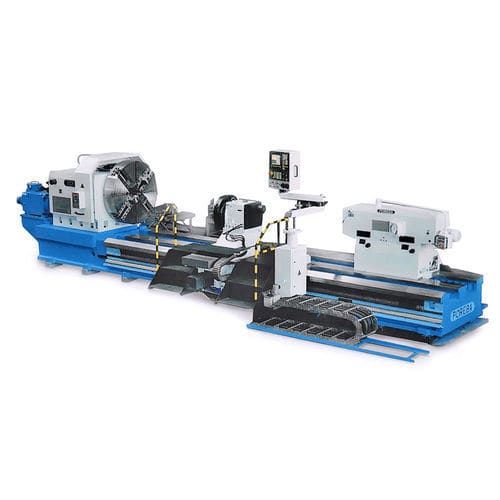

CNC turning center TCF series
for large workpieceshigh-productivityprecision

CNC turning center
CNC turning center
Add to favorites
Compare this product


Characteristics

Control type
CNC
Applications
for large workpieces
Performance
high-productivity, precision
Associated function
milling, drilling
Diameter

Max.: 2,250 mm
(88.58 in)

Min.: 1,600 mm
(62.99 in)

Spindle speed

Max.: 315 rpm
(1,979.203 rad.min-1)

Min.: 0.5 rpm
(3.142 rad.min-1)

Rapids on X

6,000 mm/min
(4 in/s)

Rapids on Z

4,000 mm/min
(3 in/s)

Nominal power

71 kW, 100 kW
(96.5 hp, 136 hp)

Overall lenght

3,550 mm
(140 in)

Overall width

2,600 mm
(102 in)

Overall height

2,300 mm, 2,500 mm, 2,625 mm
(91 in, 98 in, 103 in)

Description

In their basic version the TCF series (TCF 160 / 200 / 224 / 250 / 275 / 300) heavy centre lathes – thanks to the innovative mechanical solutions and the advanced control systems – are the multi-purpose lathes that guarantee productive rough and finish machining. PURPOSE The TCF series lathes are designed for workpiece machining in the range of turning in accordance with their specifications, especially for machining of large-size shafts. When delivered with special equipment they can operate as the horizontal machining centres with turning, drilling and milling capabilities. They can be equipped with an automatic turret, tool attachments, tool and workpiece measuring systems, controlled C axis, workpiece steady rests. CONTROL SYSTEM The application of the state-of-the-art CNC system allows for automatic, precise and productive workpiece machining according to a program. Basic parameters -3-guideways bed -Max. weight of workpiece between centre: - 30 tonnes -Turning length: - 3 to 25 m
