CNC lathe TCG 135 N
horizontalfor brake discsfor wheels

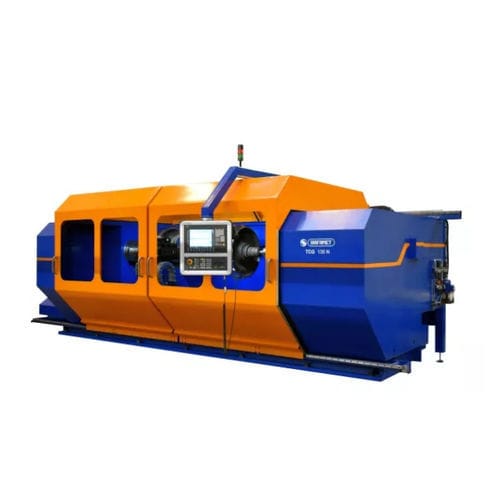

CNC lathe - TCG 135 N - Rafamet - horizontal / for brake discs / for wheels
CNC lathe - TCG 135 N - Rafamet - horizontal / for brake discs / for wheels
CNC lathe - TCG 135 N - Rafamet - horizontal / for brake discs / for wheels - image - 2
CNC lathe - TCG 135 N - Rafamet - horizontal / for brake discs / for wheels - image - 3
CNC lathe - TCG 135 N - Rafamet - horizontal / for brake discs / for wheels - image - 4
CNC lathe - TCG 135 N - Rafamet - horizontal / for brake discs / for wheels - image - 5
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
horizontal
Applications
for brake discs, for wheels
Performance
precision
Diameter

Max.: 1,250 mm
(49.21 in)

Min.: 600 mm
(23.62 in)

Nominal power

40 kW, 60 kW
(54.4 hp, 81.6 hp)

Overall lenght

8,700 mm
(343 in)

Overall width

3,500 mm
(138 in)

Overall height

2,600 mm
(102 in)

Description

The TCG 135 N is a CNC special-purpose horizontal lathe designed for reprofiling of wheels and brake discs used in rail vehicles. The machine tool enables to perform turning and burnishing of outboard & inboard journals, axle, conical or curvilinear surfaces. MAIN FEATURES -Machine major body elements made as extremely rigid, heavily ribbed box-type, high grade grey iron castings providing maximum vibration-damping capabilities during cutting process. -Main drive powered by AC motor of continuously variable rotation rates providing high productivity and quality of wheelset machining. -Automatic and reliable touch-type profile wear measurement. -Versatile equipment and wide programming options guarantee precise machining of even unusual wheel profiles.
