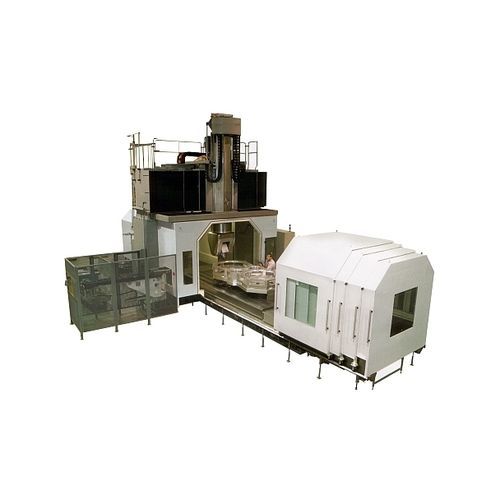

5-axis milling machine HSM 180 CNC

verticalwith moving tableautomatic

The HSM 180 CNC High-Speed Milling Machine is the CNC Planer Mill designed for dynamic machining of the complex workpieces, particularly those made of aluminium alloys. The HSM 180 CNC Milling Machines are capable of the following: -3D milling. -Drilling. -Reaming. -Boring. Threading, envelope threading (helical motion) in all machining planes, i.e. XY, YZ, XZ The application of the CNC system provides automatic and productive machining controlled by technological program. The ram spindle and tool head are provided with ISO-50 taper which enables automatic tool clamping and releasing, as well as cooperating with tool magazine (optional). MAIN FEATURES -High-speed performance. -Fixed frame of machine tool with movable or fixed cross-rail. -Movable table. -Vertical milling head consisting of cast iron body and forged steel ram.
