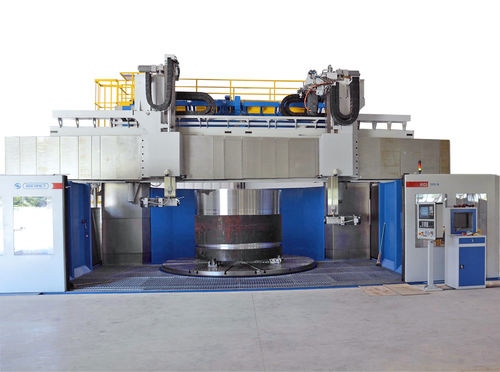

CNC turning center KCI series

vertical4-axisdouble-column

The KCI Series Heavy-duty Double column Vertical Turning Lathes are intended for turning and boring of cylindrical, conic and curved surfaces, as well as complex shaped large-size workpieces. The railhead can be equipped with a tool spindle, making it possible to perform also drilling and milling operations. The use of the latest Siemens SINUMERIK 840D CNC and digital drive technology guarantees maximum performance and the complete compatibility of all drive and control components. The KCI Series Vertical Turning Lathes along with a wide array of optional equipment are customized to meet the Customer’s individual requirements. The machine tool body system consists of base with table, two columns and connecting beam all mechanically connected what forms a rigid and stable frame structure. The machine tool major members as base, table, columns, cross-rail and railhead are made as high grade iron castings. This ensures both high geometrical stability and excellent vibration damping, better than those of the fabricated structures. MAIN FEATURES -Compact design tailored to stringent machining requirements -High torque on table providing high cutting parameters -Complex machining of workpieces with one or two railheads -Railhead(s) for turning, optionally for milling and drilling operations -Feed drives of X and Z axes realized through precise ball-screw transmissions -Tool / toolhead magazines -Direct measurement of CNC axes position by means of Heidenhein high-resolution linear scales -Twin main drive and C-axis drive -Hydrostatic guideways for railhead and ram travel - option -Available with table travel drive (Y axis) -ISO/BT, CAPTO, KM or any other tooling system
