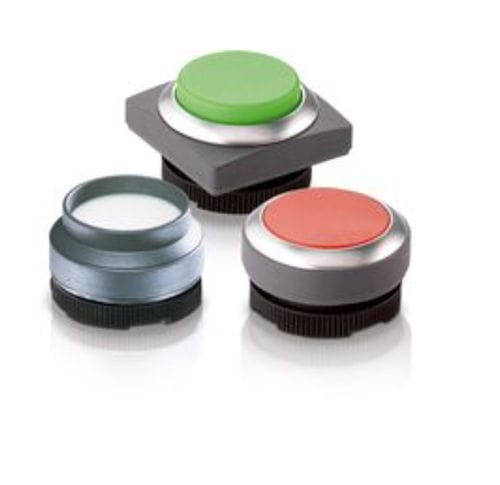

Spring push-button switch RAFIX 22 FS+ series

IP65illuminatedcontrol

RAFIX control devices are defined at RAFI as modular elements, consisting of an actuating element, if necessary a coupling and an individual contact or lighting unit. Actuating elements (such as pushbuttons, emergency stop actuators, etc.) have the intended tactility, reset and function only when assembled with the appropriate switching elements. Pushbutton with translucent bezel. In combination with a corresponding switching element, the bezel can be fully illuminated. •Measurement-control-regulation •Electrical engineering •Mechanical and system engineering •Vehicle construction •Handheld terminals •Industrial robots •Illuminated pushbutton, panel illumination with SMT LED •Low installation depth 9.2 mm (PCB) or 27 mm (QC) •Special tactile feedback •Ideal for operation with gloves •Connection types: printed circuit board connection (PCB) or plug-in connection (QC) •PCB switching elements minimize assembly errors •Switching elements with silver contacts (max. 250 V/4 A) or gold contacts (max. 35 V/100 mA) •The tactile switch adapter allows MICON 5 tactile switches to be used as switching elements •Design adaptation by different front ring variations •Two collar shapes: round and square
