Internet communication router iTN8800-A, iTN8800-E

IPLANEthernet

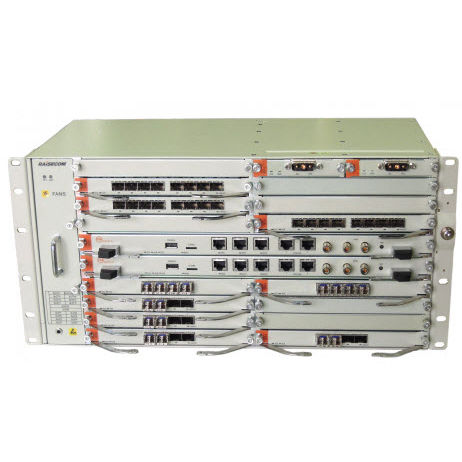

iTN8800 series are chassis-based IP/MPLS service access and aggregation devices. They support service interfaces from GE/FE, 10G to 25G, 100G. These various interfaces ensure iTN8800 chassis work with Raisecom intelligent CPEs to deliver and aggregate services on unified service monitoring and management platform. The total access and aggregation solution is perfect for government/enterprise lease-line service delivery, mobile backhauling, Internet and Cloud connect, and campus networking. iTN8800-A is a 5U-height chassis providing 14 slots for service modules. iTN8800-E is a 3U-height chassis providing 10 slots for service modules. • Modular design providing flexibility in hardware configuration • High reliability guaranteed by dual redundant power supply modules, and dual control modules • Various Ethernet interface cards available providing Ethernet interfaces from 1G, 10G, 25G, 40G to 100G • IPv4/IPv6 dual-stack • MEF CE2.0 complied E-Line, E-LAN, E-Tree, E-Access service with OAM and hardware-based SLA • Fine-tuned QoS and HCAR • VPWS, VPLS, H-VPLS, L3VPN over MPLS with service status and performance monitoring • Full IGP/EGP protocol stack, RIP, OSPF, IS-IS, BGP • Multicast traffic management by IGMP V1, V2, V3, PIM-SM, IGMP snooping, MLD v1, v2, MLD snooping • Ethernet VPN and Segment Routing for greater network simplicity, agility and scalability* • SyncE and IEEE 1588v2 TC/BC for synchronization • High network flexibility and resilience guaranteed by spanning tree protocol family, LACP, MCLAG, standard ITU-T G.8031/8032 • Management security ensured by AAA and ACL • User friendly standard SNMP-based GUI management
