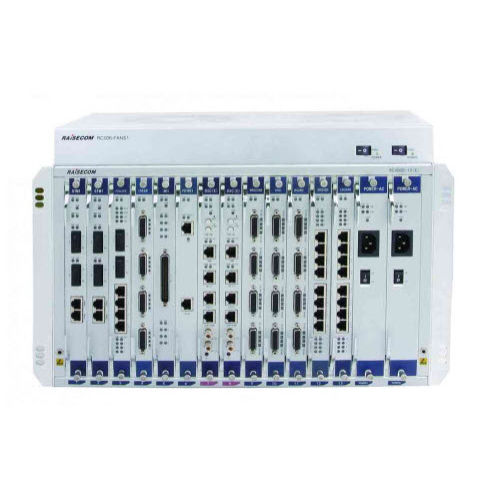

Rack-mount chassis RC3000-15

7Uindustrial

The RC3000-15 is an intelligent multi-service access platform and is mainly applicable in dedicated networks, Utilities and Transportation transport networks. The device is a Digital Access and Cross-connect System (DACS), which integrates the following functions: digital/analog access, cross-connection and transmission. The RC3000-15 is compatible with the Multi-Service Terminal Mux and can be synthesized under the Raisecom NView system for real-time configuration, management, monitoring and trapping. • Available with 4 x STM-1 and 2 x GE at line side; 7U chassis with 15 slots • Non-blocking cross-connect of up to 4096 DS0 channels • EOS • 1+1 protection over STM-1 optical interface • Available with sub-cards supporting E1, FE, FXS, FXO, 2/4W E&M, hotline co-directional 64K, V.24, RS232 at client side • Software configurable attenuation of each audio interface • Link Capacity Adjustment Scheme (LCAS) for inverse multiplex modules • DXC module supports alarm input and output • All sub-cards hot-swappable • 1+1 protection on E1, PSU and DXC cards • Power supply and fan modules with monitoring • Auto Laser Shutdown (ALS) and Build-in BERT • Inside and outside loopback for individual tributary cards • VCC channel for remote network management • SNMP (NView compatible) via in-band and out-of-band network channels
