4G communication router RAX711-C-R

IPLANEthernet

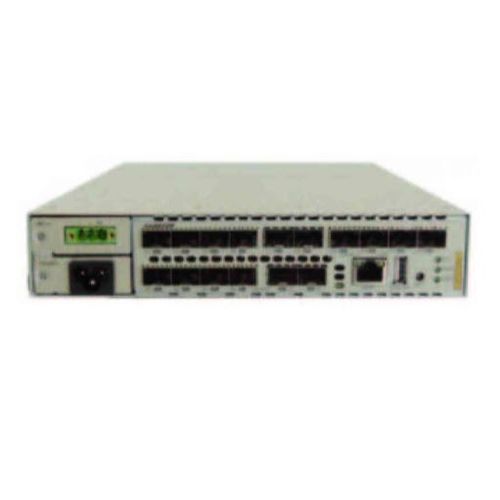

Raisecom RAX711-C-R is an advanced 10GE IP/MPLS NID providing 4 x 10G SFP+ network interfaces and 12 x 1G SFP user interfaces in a compact-design half-19-inch wide enclosure equipped with dual redundant hot-swappable power supply modules. The NID is designed for 1G/10G leased line service delivery and 4G/5G mobile backhauling. The support of standard CE2.0 services (E-Line, E-LAN, E-Tree, E-Access), various service models over MPLS (VPWS, VPLS, H-VPLS, L3VPN), and advanced OAM, SLA, resiliency features, ensure service providers great flexibility and reliability in service design and deployment. The device can operate in extended temperature range. And the support of SyncE and IEEE 1588v2 makes it ready for MBH application. • Dual hot-swappable power supply with voltage/temperature monitoring • Compact design in half-19-inch width • Extended operating temperature range: -20°C to 65°C • Zero-Touch provisioning • Standard CE2.0 services and VPWS, VPLS, H-VPLS, L3VPN over MPLS • Flexibility in traffic classification ensures customer-defined service SLA • Full set of protection mechanisms for Ethernet, MPLS, IP services • HW-based end-to-end SLA performance monitoring • Multicast and multicast traffic control • Standard RFC2544 and ITU-T Y.1564 SAT • Synchronization: SYNC-E and 1588-TC
