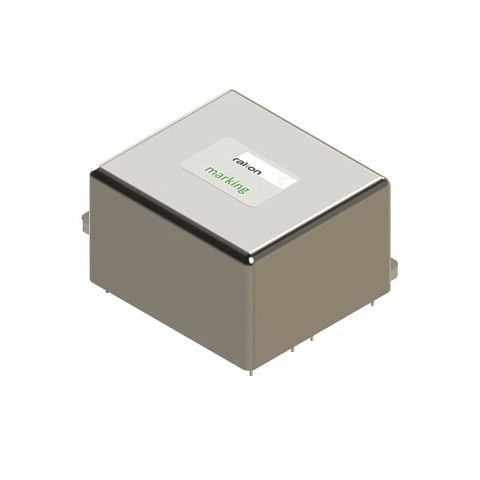

OCXO oscillator HSO13

electronichigh-stabilitySMD

The Rakon “Ground USO” HSO13 has a short-term stability (Allan Standard Deviation) of 8.10-14, is in the 10-11 stability class over the temperature range of 0°C to +50°C and is available at 5 and 10 MHz. Its close-in phase noise @1 Hz is below -130 dBc/Hz for the 5 MHz product. The ‘Ground USO’ HSO13 is specially designed to meet the request of the calibration and metrology laboratories that have high stability frequency standards but also the applications that require high performance reference oscillators like the ground stations. Features  Short-term stability: 8 x 10-14 at 5 and 10 MHz  Frequency stability: ± 5 x 10-11 over 0 to +50°C  Supply voltage: 24 V (12 V available on request)  Ageing: ± 5 x 10-11 (±50 ppt) per day Applications  Reference oscillator for laboratories  Master clocks  Ground stations
