OCXO oscillator ROX3827T3
electroniccurrentpower

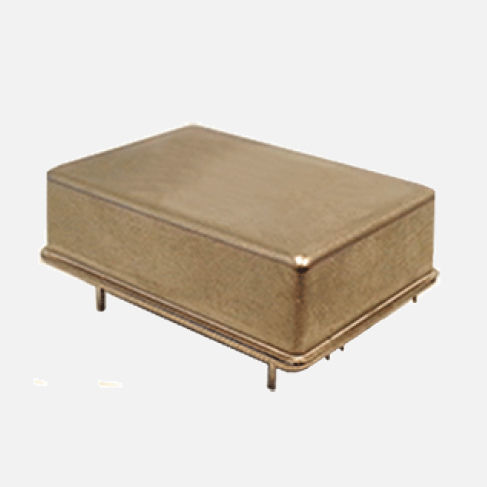

OCXO oscillator - ROX3827T3 - Rakon - electronic / current / power
OCXO oscillator - ROX3827T3 - Rakon - electronic / current / power
OCXO oscillator - ROX3827T3 - Rakon - electronic / current / power - image - 2
Add to favorites
Compare this product


Characteristics

Type
OCXO
Technology
electronic
Electrical characteristics
frequency, power, current
Domain
for telecom applications
Frequency

Min.: 5 MHz

Max.: 40 MHz

Description

The ROX3827T3 OCXO is the cost effective highly stable oscillator for telecom applications. The performance over temperature range is comparable to the current ROX-T2. Its total stability is down to less than 50 ppb per year across all causes. Frequencies available , and power supply options are 3.3V, 5V & 12V. These 38 x 27 mm package series of oscillators are designed with an embedded post-compensation system with a micro-controller. They are optimized designs for the Stratum 3E and up to Stratum 2. Features  Hold over below 7 µs /15 µs over 24 hours, including temperature changes  Standard frequencies: 10, 12.8, 13, 20, 24.576, 26 and 40 MHz  Small form factor  Temperature sensor output  2 packages height : 11.7 mm and 17 mm Applications  IEEE 1588: G.8263, G.8273.x  Stratum 3E timing modules  Stratum 2 stability  Time and frequency references  Wireless Base Stations  LTE-TDD Base Stations

Catalogs

ROX3827T3
ROX3827T3
2 Pages
ROX3627T3
ROX3627T3
2 Pages

Other Rakon products

OCXO AND OCSO
