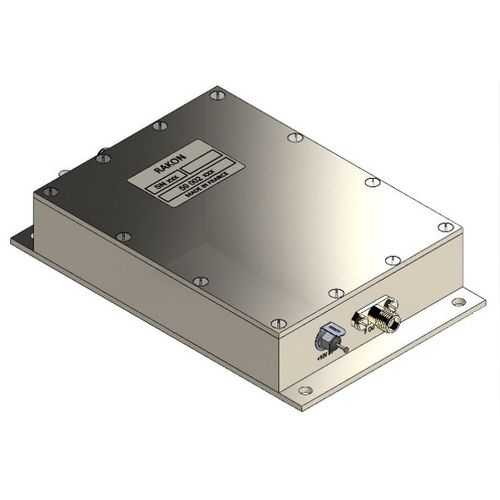

Oven-controlled SAW oscillator LNO3200B3

electroniclow-noise levelmilitary

LNO 3200 B3 is a low noise oscillator generating an output signal . It is composed by an OCSO (Oven Controlled SAW Oscillator) fundamental frequency, followed by a frequency multiplier x10. It can optionally include a PLL to be phase locked on an external 10MHz reference. LNO 3200 B3 is designed for routine environment (test equipment, shelter, ground based military equipment ...). It is available in a 120.7mm x 76.2mm x 23.3mm package. Features Excellent phase noise performance (typical values) :  -132 dBc/Hz @ 1 kHz offset  -152 dBc/Hz @ 10 kHz offset Applications  Instrumentation (test equipment, simulator)  Ground based military equipment as per MIL-PRF-28800F, Class 3  Clock for high speed ADC  -157dBc/Hz noise floor
