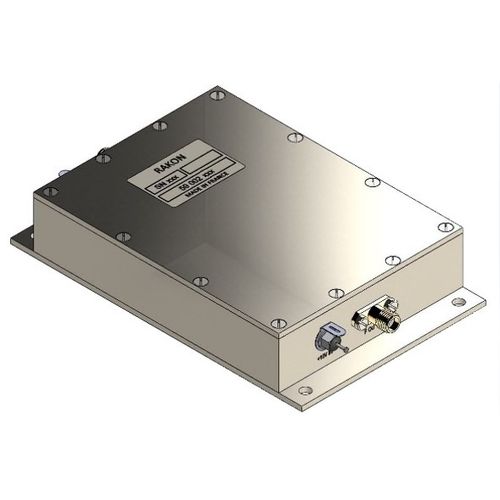

Oven-controlled SAW oscillator LNO10000B3

electronicPLLlow-noise level

LNO 10000 B3 is a low noise oscillator generating an output signal at 10 GHz, phase-lockable on an external reference. It is composed by an OCSO (Oven Controlled SAW Oscillator) fundamental frequency, followed by a frequency multiplier x20. Three operating modes are available, through Control Input signal:  Free running Control Input = Not connected  Voltage controlled Control Input = DC Voltage  Phase Lock Loop Control Input = 10 MHz Ref LNO 10000 B3 is designed for routine environment (test equipment, shelter, ground based military equipment ...). It is available in a 120.7mm x 76.2mm x 23.3mm package. Features Excellent phase noise performance (typical values) :  -115 dBc/Hz @ 1 kHz offset  -140 dBc/Hz @ 10 kHz offset  -151 dBc/Hz noise floor Applications  Instrumentation (test equipment, simulator)  Ground based military equipment as per MIL-PRF-28800F, Class 3  Clock for high speed ADC
