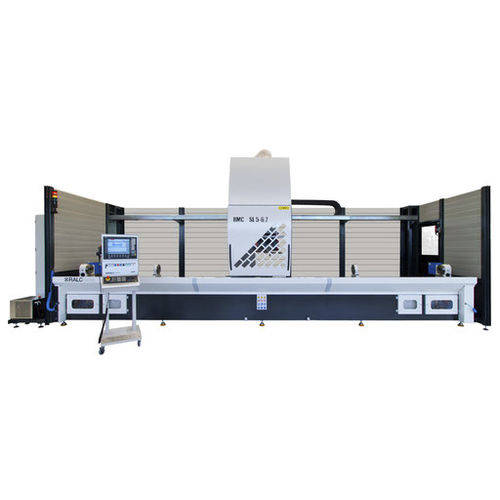

4-5 axes CNC machining center RMC SL

verticalfor aluminumfor steel

RMC SL is the most stable mobile portal CNC Machining Center in its class. It is the machine that responds more effectively to the most demanding demands of the companies that work extruded. The axes, completely interpolating, allow optimum finishing grades and machining speeds far above average. Available with 4 or 5 controlled axes, with fully automatic management, it performs drilling, milling and rigid tapping machining. The machine is available in three standard versions according to the stroke of the X-axis: 4.400-6.700-9,000. The working area can be managed by exploiting the entire length of the machine or in two independent zones (commuter mode). The RMC SL Center is equipped with a system for Remote Assistance over an IP network. Morse The number of vices depends on the length of the machine and the machining requests. Their positioning is performed by the mobile portal, at pre-set quotas by the operator program. In single-zone mode, they flow along the entire working range in X. The independent closure of the vices can be controlled during the loading of the pieces. Spindle RMC SL-Electro-spindle The 12 KW electrospindle in S6 with high torque allows to carry out heavy machining typical of the industrial sector. The spindle is liquid-cooled. This allows the use on extruded steel and aluminium profiles. The tool is lubricated with a minimal oil diffusion system, managed directly by the numerical control.
