Aluminum cutting line for brassfor coppertube
Add to favorites
Compare this product
Characteristics
- Material
- for aluminum, for brass, for copper
- Product handled
- tube
- Control type
- PLC-controlled
- Associated function
- bending, engraving
- Other characteristics
- automatic, orbital, vertical
- Tube diameter
Max.: 16 mm
(1 in)Min.: 4 mm
(0 in)
Description

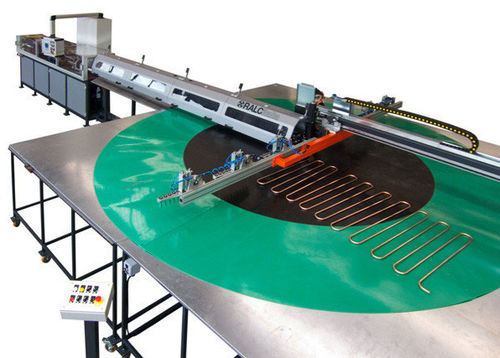

The Serpentinatrice is a special cutting line equipped with a suitable skate for the bending of the pipe; This system assures a good degree of curvature and avoids particular deformation on the surface of the pipe.
Technical data:
•Minimum working diameter: Ø 4 mm
•Maximum machinable diameter: Ø 16 mm
•Machinable Material: Copper, aluminium, brass, AISI 316l, Cupronickel
Features:
•Coil feeding
•Horizontal and vertical straightening
•Advancement with controlled motorized belts
•Pre-engraving orbital cutting
•Left and right bending units
•Swivel support Table
•Predisposition for the connection of automatic systems for auxiliary machining
•Cut with tolerance of ± 0.2 mm
•Siemens PLC and OP7 operator panel
•Quick Tooling Systems
