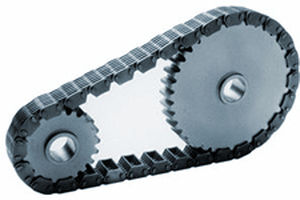

Power transmission chain 3 940 - 36 750 lbf | SC seriesmetalroller
Add to favorites
Compare this product
Characteristics
- Type
- power transmission
- Material
- metal
- Configuration
- roller
- Chain pitch
Max.: 2 in
Min.: 0 in
Description
SC chain can accommodate speeds approaching 6500 fpm and loads in excess of 1000 hp. Utilizing the patented Ramsey roller bearing joint, SC chain is one of Ramseys most popular industrial chains.
SC series chains are available in center guide and side guide assemblies. Center guide assemblies are fully compliant with the ASME Standard for silent chain. Both side guide and center guide operate on industry standard sprockets
We recommend SC chain primarily as a replacement chain for existing power transmission applications where it has been successfully employed in the past. SC chain weighs less than an equal width of RPV or RP chain, and it typically costs less. Available pitches: 3/16", 3/8", 1/2", 5/8", 3/4", 1", 1 1/2".
