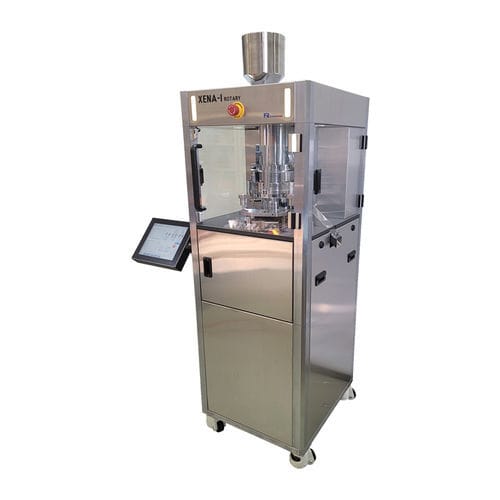

Rotary tablet press XENA-I Rotary

• The XENA-I ROTARY is best for product research and development, process improvement, and clinical or small-scale production. • This small-size press is GMP compliant and designed with removable fairing so it is very easy to assemble and disassemble the machine parts. • Capable of monitoring upper and lower compression forces, ejection force, and pre-compression force. Technical Data • Station: 8 • Type: Euro D or B or D&B • Max. Main Compression: 60KN • Max. Main Pre-Compression: 10KN • Max. Ejection Pressure: 5KN • Max. Filling Depth: 18 mm • Upper Punch Penetration: 1~4 mm • Max. Tablet Diameter: 25 mm • Max. Tablet Thickness: 8 mm • Turret Speed: ~40 RPM • Feeder Speed: ~60 RPM  • Pitch Circle Diameter of Turret: Ø200 • Filling Cam: 4~10 mm / 8~14 mm / 12~18 mm • Size :1610(H) x 580(W) x 650(D) mm [Without Hopper, Panel PC] 1800(H) x 990(W) x 650(D) mm [With Hopper, Panel PC] • Power: 220V(3Ph), 50/60Hz, 3KVA • Weight: 700KG [Approx] Control Part • 10.4” Panel PC • All controls on one screen • Punch Tooling: Inching Control & Replace both upper and lower punches in one section • Multi Recipe Function • Real-time Compression (Main/ Pre/ Ejection) Monitoring • Automatic control device for Filling Depth • Automatic Detection of Filling Cam by type • Alarm and stops by interlock as the door opens during operation • Data graph Display & Save (DAQ Program-Data Acquisition)
