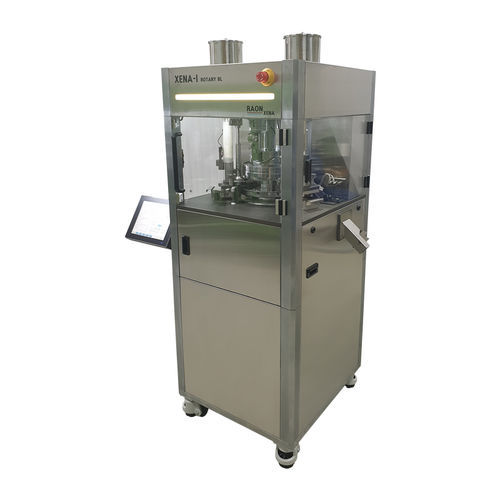

Rotary tablet press XENA-I ROTARY BL

double-layersingle layer

• The XENA-I ROTARY BL can produce double-layer as well as single-layer tablets. • Suitable for product research and development, process improvement, and clinical or small-scale production. • This small-size press is GMP compliant and designed with removable fairing so it is very easy to assemble and disassemble the machine parts. • The software package includes R&D software to be used for tablet production and development. Technical Data • Station: 10 • Type: Euro D or B or D&B • Max. Main Pre-Compression: 10KN • Max. Ejection Pressure: 5KN • Max. Filling Depth: 18 mm • Upper Punch Penetration: 1~4 mm • Max. Second Layer Insertion Depth: 6.5 mm • Max. Tablet Diameter: 25 mm • Max. Tablet Thickness: 8 mm • Turret Speed: ~40 RPM • Feeder Speed: ~60 RPM  • Pitch Circle Diameter of Turret: Ø230 • Filling Cam: 4~10 mm / 8~14 mm / 12~18 mm • Size: 1740(H) x 700(W) x 780(D) mm [Without Hopper, Panel PC] 1880(H) x 1070(W) x 780(D)mm [With Hopper, Panel PC] • Po]wer: 220V(3Ph), 50/60Hz, 4KVA • Compressed Air: 5 bar • Weight: 1000KG [Approx] Control Part • 12.1” Panel PC • All controls on one screen • Sampling: Feeder 2 reverses back at the beginning of sampling • Punch Tooling: Inching Control & Replace both upper and lower punches in one section • Powder Detection: Equipped with powder detection sensor (Feeder 1, and 2) • Automatic Detection of Filling Cam by type • Automatic control device for Filling Depth
