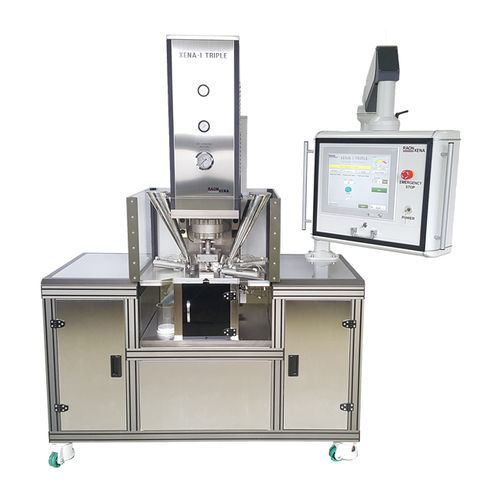

Triple-layer tablet press XENA-I TRIPLE

double-layersingle layer

• The XENA-I TRIPLE is a versatile single-punch tablet press. The XENA-I TRIPLE is capable of producing single-layer, double-layer, and even triple-layer tablets. • Adjustable force and dwell time profiles can be created to aid the assessment of powder characteristics at their early stage of development. • A key advantage is the ability to use standard Euro B/D punches and dies, although certain other punch types can also be accommodated. • The measurement of punch displacement is a valuable option to measure the compressibility of the formulation. Technical Data • Discharge Compression Force: 15KN (1.5 Ton) • Type: D&B • Tablets Diameter: 25 mm • Station: 1 • Max. Filling Depth: 20 mm • Upper Punch Penetration: 6.5 mm • Upper Punch Motion: Pressure Cylinder (Air Pressure & Hydraulics) Speed: Variable Load Cell: Max.100KN • Lower Punch Motion: Motor Power: Servo 0.7KW Speed: Max. 10 mm/min Load Cell: Max.100KN • Output: Single Layer: 14 Tablets/Min Bi-Layer: 8 Tablets/Min Triple Layer: 4 Tablets/Min • Compressed Air: 5 bar • Auto Safety Cover • Size: 2000(H) x 1500(W) x 760(D) mm • Power: 220V(1Ph), 50/60Hz, 2KVA • Weight: 700KG [Approx] Control Part • 12.1” Panel PC • Recipe Function (Tablet hardness and production speed control) • Equipped with powder filling detection laser sensor • Ejection of each tablet (Sample tablet discharge for each layer) • Real-time Pressure Monitor • Press force, Eject force, and Thickness measurement in real time • Data graph Display & Save (DAQ Program-Data Acquisition)
