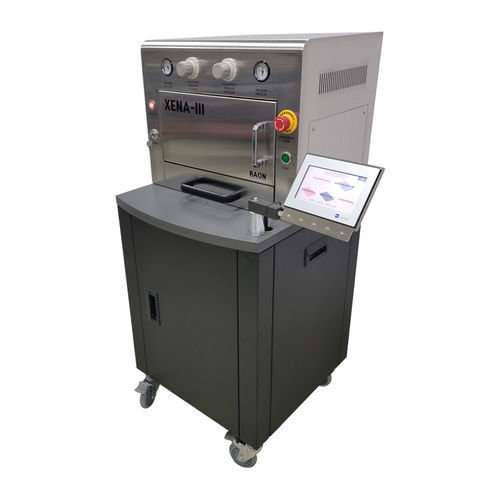

Blister packing machine XENA - III

semi-automatictabletfor the food industry

• The XENA-III, Semi-Automatic Blister Packing Machine offers a 3-in-1 manufacturing process for low-volume blister packing including forming, sealing, and perforating/cutting. • Time-saving and user-friendly: All operations are carried out simply and quickly on the same machine by changing and replacing the format-related parts without a need to resort to wrenches or specialized personnel. Technical Data • Materials:PVC/ALU, PVDC/ALU, PETG/ALU, PVC/CRAFT PAPER, ALU/ALU • Max. Forming Depth:PVC/ALU: 15 mm, ALU/ALU: 10 mm • Blister Sizes:136*100 mm [Blister per cycle: 2] For PVC/ALU 100*68 mm [Blister per cycle: 1] For ALU/ALU • Temperature:20~200°C • Common Tool:Forming Heating Tool (Forming Upper Mold) Sealing Heating Tool (Sealing Upper Mold) Cutting Tool ( Cutting board & Blade) • Compressed Air:5 bar • Power:220V(1Ph), 50/60Hz, 2KVA • Size:600(W) x 1345(H) x 650(D) mm [Without Touch screen] 850(W) x 1345(H) x 650(D) mm [With Touch screen] • Weight:200KG [Approx Control Part • 7” Touch Screen • Auto Temperature Control • Automatic Step Control • Format parts Detection Sensor • Easy setup HMI • Tool-less changeover of format parts in less then 90 seconds.
