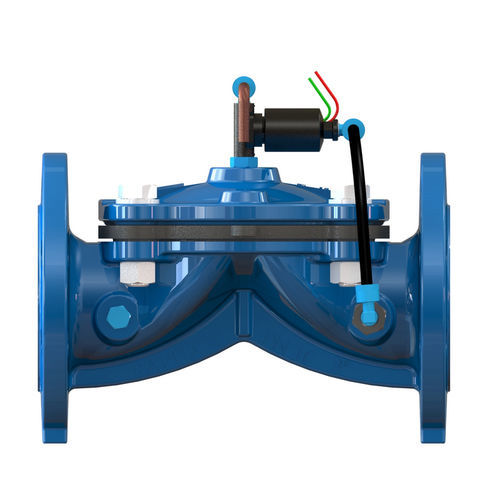

Diaphragm valve RAF 31Pelectro-hydraulicfor controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- electro-hydraulic
- Function
- for control
- Media
- for water
- Body
- flange, threaded, plastic
- Number of channels
- 3-way
- Other characteristics
- normally closed
- DN
Min.: 25 mm
(0.984 in)Max.: 150 mm
(5.906 in)- Pressure
Min.: 0.6 bar
(8.7 psi)Max.: 10 bar
(145 psi)- Temperature
70 °C
(158 °F)
Description
The RAF 31 electric valve is a Normally Closed (N.C) line pressure hydraulically actuated.
The RAF 31 (N.C) valve opens when 3-W plastic solenoid valve is energized. The RAF 31 shuts off when 3-W plastic solenoid valve is de-energized.
The 3-W electric solenoid valve configuration together with Raphael’s patented diaphragm enables smooth opening and surge free shut off.
