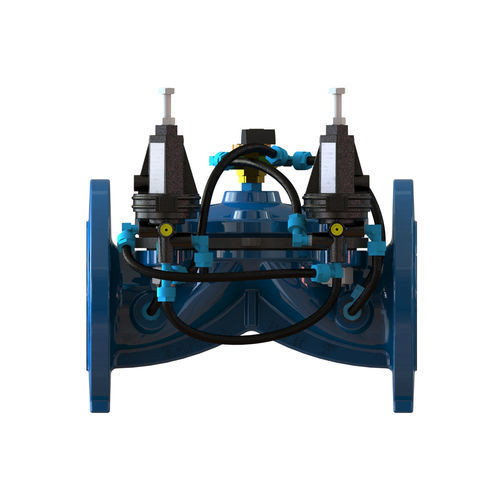

Diaphragm valve RAF 68Rhydraulically-operatedfor controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- hydraulically-operated
- Function
- for control
- Media
- for water
- Body
- threaded, iron, plastic
- Number of channels
- 3-way
- Associated function
- reducing
- DN
Max.: 150 mm
(5.906 in)Min.: 25 mm
(0.984 in)- Pressure
10 bar
(145 psi)- Temperature
70 °C
(158 °F)
Description
The RAF 68R maintains a minimum upstream pressure, as set on the 3-W pressure sustaining plastic pilot and a maximum downstream as set on the 3-W pressure reducing plastic pilot.
The minimum upstream and the maximum downstream pressure are maintained regardless of flow changes.
The 3-W pilot configuration together with Raphael’s patented diaphragm enables smooth and precise pressure control.
Catalogs
RAF VALVES IRRIGATION
96 Pages
