Simulation software MEGAbend

networkmachine3D

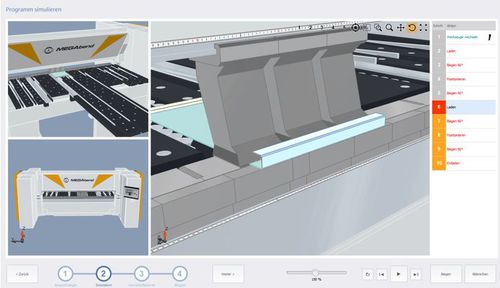

Create a part program automatically. Import a STEP, DXF or GEO file with the part geometry. The software analyzes the STEP file and automatically generates a 3D model. For DXF files, the programmer has to add to the bend angle. Overbend angles for springback compensation are added from material tables. One click programming The software programs the bending sequence including handling operations automatically and with a single mouse click! If there are different folding sequences (fold short side before long side or vice versa), the software shows a ranking of the alternatives. The automatically created program sequence also includes the tool setup and the part loading position (with ViN - Virtual Navigator) Folding simulation in 3D A 3D simulation represents the bending sequences. The bending program gets to the machine via a customer network or USB stick. Comfortable program correction ... if this is at all necessary!
