Simulation software ProfileCenter
programmingnetworkmachine

Simulation software - ProfileCenter - RAS Reinhardt Maschinenbau GmbH - programming / network / machine

Simulation software - ProfileCenter - RAS Reinhardt Maschinenbau GmbH - programming / network / machine - image - 2

Simulation software - ProfileCenter - RAS Reinhardt Maschinenbau GmbH - programming / network / machine - image - 3

Simulation software - ProfileCenter - RAS Reinhardt Maschinenbau GmbH - programming / network / machine - image - 4

Simulation software - ProfileCenter - RAS Reinhardt Maschinenbau GmbH - programming / network / machine - image - 5

Add to favorites

Compare this product

Go to the RAS Reinhardt Maschinenbau GmbH website for more information

Characteristics

Function: programming, simulation
Applications: network, machine
Type: 3D

Description

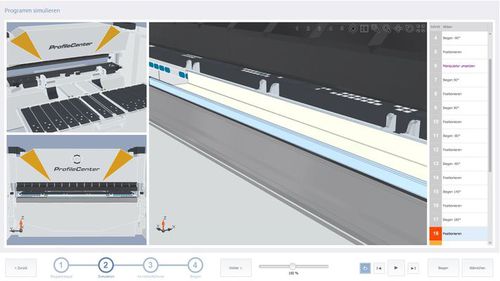

Import of a STEP file (alternatives: DXF, GEO) with the part model. The software analyzes the STEP file and automatically generates a 3D model. For DXF files, the programmer has to add to the bend angle. Springback compensation angles are listed in material tables. One Click Programming The software automatically programs the bending sequences with a single mouse click! If there are different folding sequences, the software recommends the best alternative with a 5 star ranking. The automatic programming includes the loading and handling of the profiles. Simulation of the bending sequence in 3D A 3D simulation represents the bending sequences. The bending program gets to the machine via a customer network or USB stick. Comfortable program correction ... if this is at all necessary!
