Analysis software Multibend-Center

simulationmachineoffice

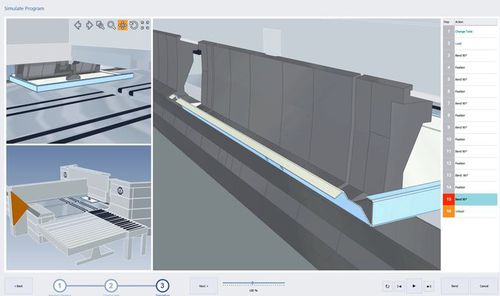

Import of a STEP file (alternatives: DXF, GEO) with the part model. The software analyzes the STEP file and automatically generates a 3D model. For DXF files, the programmer has to add to the bend angle. Springback compensation angles are listed in material table One Click Programming The software programs the bending sequences including all handling operations automatically and with a single mouse click! If there are different folding sequences (fold short side before long side or vice versa), the software recommends the best alternative with a 5 star ranking. The automatically created program also includes the tool setup. A 3D program simulation shows in detail how the part will be created. The software generates a .pgm file that can be used even on existing machines. For complex bending sequences the .pgm files can be edited with the CellControl software. Edit programs With the CellControl Software programs can be edited in the office or at the machine. By using the known program structure you can add special functions or change sequences individually.
