Ceramic igniter

biomass

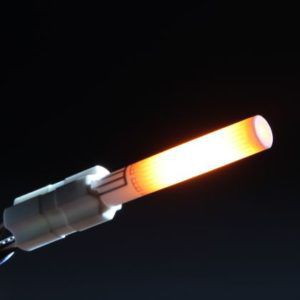

Pellet igniters – ceramic hot surface igniters for pellet burners Our ceramic igniters are perfectly suitable for wood pellets, but also for the ignition of wood chips, logs, coal briquettes or other solid fuels (biomass such as corn, etc.) and do not leave you in the cold! The hot surface igniters are usually offered as a ready-to-install solution that is easy to assemble. The ceramic heater is interchangeably inserted in a temperature-resistant ceramic base and is fixed by clamping springs in the base and electrically contacted. The ignition takes place via air heating. Due to the special cylindrical geometry the air can flow through and around the heater, on the inside as well as the outside.In combination with an extremely high surface temperature of 1000 ° C, both in continuous and in alternating operation, the supply air is heated to the highest temperatures in the shortest possible time. With this ideal ignition fan very short ignition times are realized, which is associated with minimal emissions. Due to the manufacturing process, the conducting path is completely embedded in a high-purity alumina ceramic. Thus, the ceramic heater is completely electrically isolated towards the outside and the inside and the electrical contacts are enclosed by the ceramic socket. The glow starter is thus extremely resistant to oxidation and corrosion, extremely durable and resilient. Depending on the operating conditions, the heater has a lifetime of up to more than 100,000 heating cycles. Another enormous advantage is the insensitivity of the hot surface igniter to overheating, as it can be caused by a fan failure e.g..
