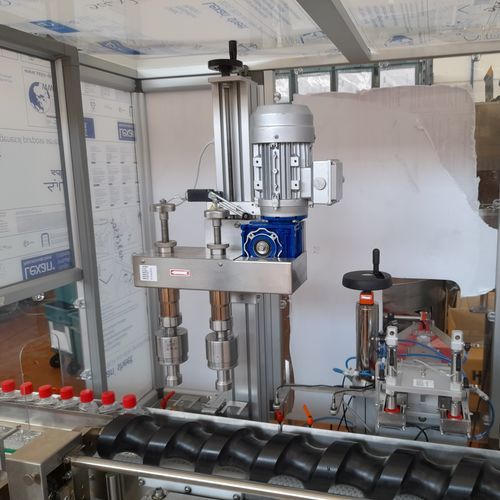

Twin-head capping machine CAP 02L

linearelectropneumaticautomatic

The CAP02L capper represents a productivity upgrade of the simpler single-head in-line capper. The production can reach 2500-3000 pieces per hour. It is supplied with 1 complete automatic closing system for pressure, screw or aluminum caps Format change costs and times for bottles of different shapes and sizes continue to be low compared to a monoblock machine, achieving in any case an interesting productivity. GENERAL FEATURES • Main structure in anodized aluminum profile, completely covered with stainless steel panels. Inlet and outlet belt with single motorization: adjustable guides in stainless steel and polyethylene. • A format screw sorting system transports two bottles at a time in correspondence with the capping. • Protective cabin in anodized aluminum profile and Lexan panels with mechanical safety devices • Electrical and control panel on board the machine • Automation and controls based on Siemens S7 1200 PLC and indicator lights on panel for alarm signaling CLOSING SYSTEM • Caps feeding automatically by: • unscrambler with vibration and soundproofing with automatic feeder option for greater autonomy of cap loading. • Conveyor of caps with belt or double lane linear vibrator • Insertion of caps with mechanical or electro-pneumatic device with double head • Double-headed closing unit for plastic or aluminum caps with variable speed and magnetic clutch with mechanical adjustment of the closing torque. • & nbsp; CHECK POINTS • Minimum and maximum load of bottles on belt (stand by) • Control of the presence of the bottle during capping (stand by) • Minimum load caps (stand by) • Cap on closing (stop)
