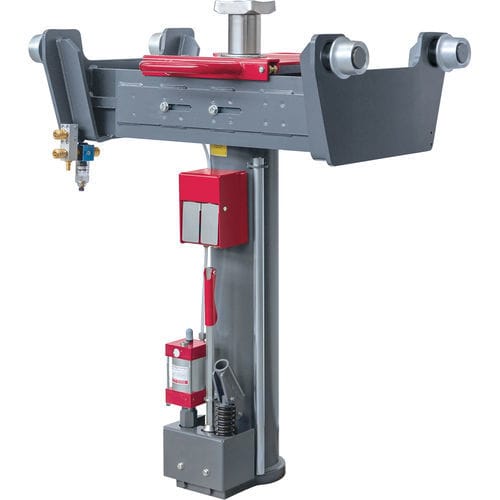

Pit jack J150.8F

hydro-pneumatic15 tonsfor trucks

The hanging pit lifts from Ravaglioli convince with an exceptionally well thought-out safety concept, combined with ergonomic ease of use – without compromise. This is how we set standards in modern lifting technology. Measuring the pit becomes a minor matter Undercarriage with above-average adjustment range Made in Germany – 125 years’ experience in lifting Technology All important controls are red to prevent incorrect operation Handle for moving the lift Front-mounted controls and large-scale control buttons, also operable with gloves Undercarriage castors are covered against damage Pump rod tidily positioned on the lift. The lifting unit lowers by means of spring pack at 250 kg load and secures against slipping Needle bearing mounted undercarriage castors with grease nipple The piston rod is slightly wetted with oil to protect against corrosion Optional: Pneumatic power set with condensate separator and compressed air connections Compact, sturdy design for a reassuring sense of security. Safely dimensioned – External forces and bending moments are compensated by the large piston rod diameter. Intuitive operation includes a quick lift via push button, additional load lift by means of an air motor, a fine lift with a pump rod and a lowering via hand lever. The extra-long cylinder guide ensures that lateral forces can be absorbed, even when loads are outside the center. 2 layer coating for perfect corrosion protection. No disturbing hydraulic hoses installed Longevity – Piston rod and pump piston are hard-chrome plated against corrosion and wear. Anti-rust prevention – During each lifting and lowering movement piston rod and inner cylinder wall are moistened with oil.
