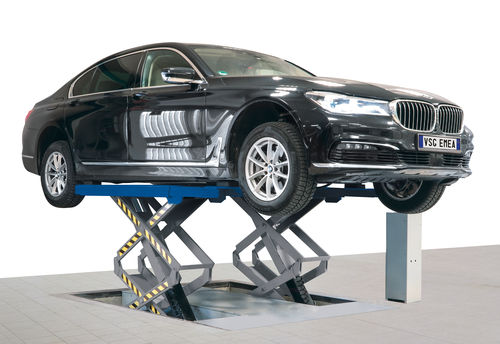

Double-scissor post lift RAV510I
3.5 tonelectro-hydraulic400 V

double-scissor post lift
double-scissor post lift
double-scissor post lift
double-scissor post lift
Add to favorites
Compare this product


Characteristics

Type
double-scissor
Maximum load
3.5 ton
Operation
electro-hydraulic
Voltage
400 V, 230 V
Applications
for car
Other characteristics
platform
Lifting height

Max.: 1,825 mm
(71.85 in)

Min.: 0 mm
(0 in)

Lifting time

41 s

Motor power

2.6 kW
(3.54 hp)

Description

Extensible platforms to reach pick up points of the more demanding vehicles. The best solution for a rational workshop. Space-saving when lift is all raised Completely free floor space when lift is fully lowered All pivot points made with self lubricating bushings for long life Every time the platforms reach the floor, the lift is perfectly levelled thanks to a patented valve Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position
