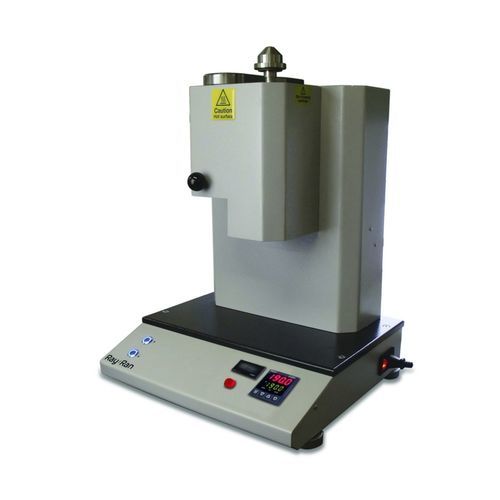

Automatic melt flow indexer MFR100

The MFR100 is the basic model offered within the Ray-Ran Range of Melt Flow Indexers and conforms to “method A” testing of International Test Standards. The manually operated test procedure is very simple to undertake. Molten Polymer is extruded through a closely controlled orifice (die) from the apparatus using pre-set conditions of temperature and pressure produced by a dead weight system. The extruded polymer is cut off manually and is then weighed. Using the time interval to extrude the polymer its flow rate over 10 minutes can easily be determined, thus giving the Melt Flow Index (MFI) or Melt Mass Flow Rate (MFR) in g/10 min.The MFR series of Melt Flow Indexers are supplied as standard with a replaceable hardened steel cylinder liner which can be simply swapped if a replacement is needed, or for Hastelloy (optional) if testing corrosive materials is a requirement. A Tungsten Carbide test die and hardened steel piston along with 2.16 kg test load and tooling ancillaries compliment the apparatus to get you testing straight out the box.A 16th DIN temperature controller displaying set value and actual value, and a PT100 Platinum Resistance Thermocouple accurately control the barrel temperature to 0.1 °C. Dual zone heating gives accurate temperature deviation along the length of the barrel to international test standards.An integrated timer is also fitted to accurately time the extrusion of the material in seconds to enable you to make cuts more accurately so the MFR can be calculated.
