RF coaxial cable surge protector RayDat CP 7/16

coaxial BNCin-lineDC

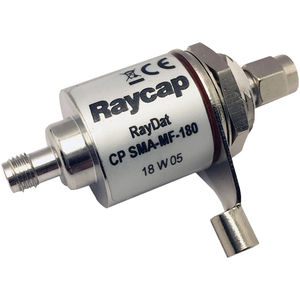

IEC/EN Category: C1/C2/C3 Protection: Impedance Matched Maximum Operating Voltage: 70, 180, 280 V Maximum Peak Power: 40, 125, 300 W Frequency Range: DC – 2.5 GHz Surge Discharge Ratings: In: 10 kA, Imax: 20 kA Impedance: 50 Ω Insertion Loss: 20 dB Termination: 7/16 Type (M-F) Housing: Bulkhead Installation, Shielded Enclosure Compliance: IEC/EN 61643-21 The RayDat CP 7/16 Series of coaxial surge protectors is intended to protect base station RF antenna systems and is suitable for frequencies from DC to 2.5 GHz. It is designed for bulkhead or in-line installation. The careful design, low capacitance gas discharge arresters, and high quality 7/16 - type termination connectors ensure a minimum of insertion loss throughout the frequency band. Transfer power is 40 W to 300 W continuous depending on coaxial cable protector voltage. The CP 7/16 coaxial cable protector is designed in accordance with the IEC 61643-21: 2012 standards and regulations. GDT is replaceable. The unit should be solidly mounted to the coaxial feed-through bulkhead, which should in turn present a low impedance path to ground for direct or partial lightning currents.
