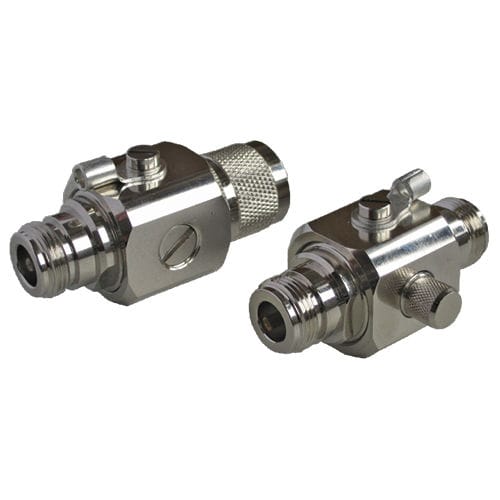

RF coaxial cable surge protector RayDat CP N

coaxial BNCin-lineDC

IEC/EN Category: C1/C2/C3 Protection: Impedance Matched Maximum Operating Voltage: 70, 180, 280 V Maximum Peak Power: 40, 125, 300 W Frequency Range: DC – 2.6 GHz Surge Discharge Ratings: In: 10 kA, Imax: 20 kA Impedance: 50 Ω Insertion Loss: 20 dB Termination: N Type (F-F, M-F) Housing: In-line Installation, Shielded Enclosure Compliance: IEC/EN 61643-21 The RayDat CP N Series of coaxial surge protectors is intended to protect RF antenna systems and is suitable for frequencies from DC to 2.6 GHz. It is designed as an in-line unit allowing ease of installation. The careful design, low capacitance gas discharge arresters and high-quality N-type termination connectors, ensure a minimum of insertion loss throughout the frequency band. Transfer power is 40 W to 300 W continuous, depending on the coaxial cable protector voltage. The CP N coaxial cable protector is designed in accordance with IEC 61643-21: 2012 standards and regulations. A grounding stud is provided which should be connected to the system ground or coaxial feed-through bulkhead, as directly as possible.
