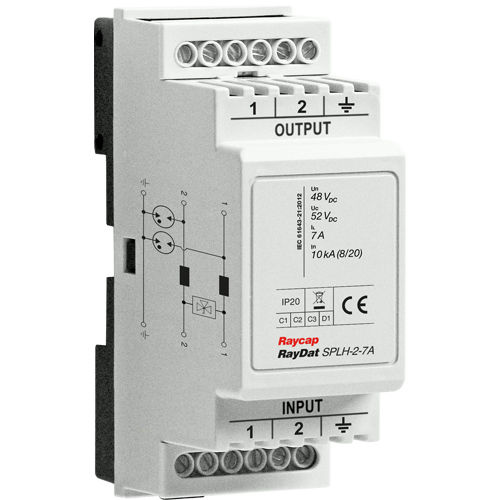

DC power surge protector RayDat SPLHcompactgas discharge tubeDIN rail
Add to favorites
Compare this product
Characteristics
- Applications
- DC power
- Other characteristics
- compact, gas discharge tube, DIN rail, low-voltage
- Voltage
36 V
- Primary current
Max.: 20,000 A
Min.: 10,000 A
Description
IEC/EN Category: D1/C1/C2/C3
Mode of Protection: Longitudinal, Transverse
Voltages: 36 V DC
Surge Discharge Ratings: In: 10 kA, Iimp: 2.5 kA
Series Load Current: 7 A
Enclosure: DIN 43880 2 TE, DIN Rail Mount
Terminals: Stranded to 2.5 mm2
Housing: Compact Design
Compliance: IEC/EN 61643-21
The RayDat SPLH-2 Series has been developed to protect ungrounded DC power supplies. Coarse protection is provided using a 2 pole gas discharge tubes, while fine protection is provided using a high-speed silicon stage. Care is taken to ensure coordination between these two stages without voltage or surge current blind spots occurring.
