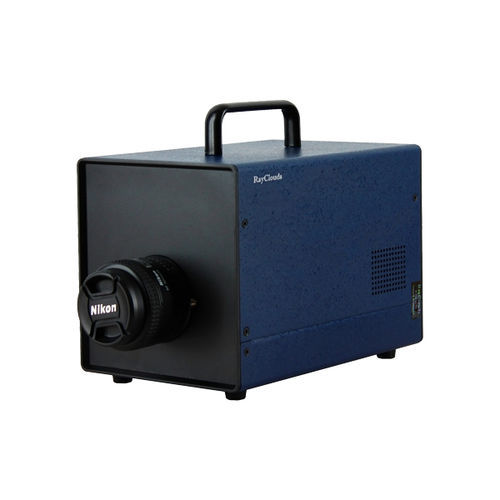

Spectrum analyzer RT-200A

papernoiseoptical

RT-200A Response Time Analyzer is equipped with high-sensitivity PMT sensor, which has the characteristics of low noise and high sensitivity circuit design. The RT-Com professional analysis software provides a response time test module to support single-machine or cooperate optical measurement systems. It can accurately capture moving images, realize high-speed and high-precision measurement of response time and flicker, and provide an excellent solution for the optimization of display products. Optional RT-200M Response Time Module, the function of the Response Time Module is equivalent to the instrument, which can be combined with the system to finish response time and flicker measurement, etc. Equipped with high-sensitivity PMT sensor and CMOS image sensor, it has the characteristics of low-noise and high-sensitivity circuit design. A telescopic lens and 1°/0.2° viewing angle design is adopted. Equipped with a filter close to the CIE Y curve, with FFT and other data filter analysis designs, to achieve high-precision response time measurement. Capable of measuring both FMA and JEITA modes, with a sampling rate of up to 500Kbs, a μs-class response speed and a storage depth of up to 256M data. Professionally used in LCD, OLED grayscale-grayscale response time, flicker and refresh rate measurement of mobile phones, e-sports displays, e-paper devices, TV screens and other products. Built-in integrated moving picture response time (MPRT) analysis, EBET and other results can be obtained through BEW. Accurate measurement and analysis can be performed even at weak signals as low as 0.001cd/m^2 luminance.
